SECURISTYLE

Sterling Lock

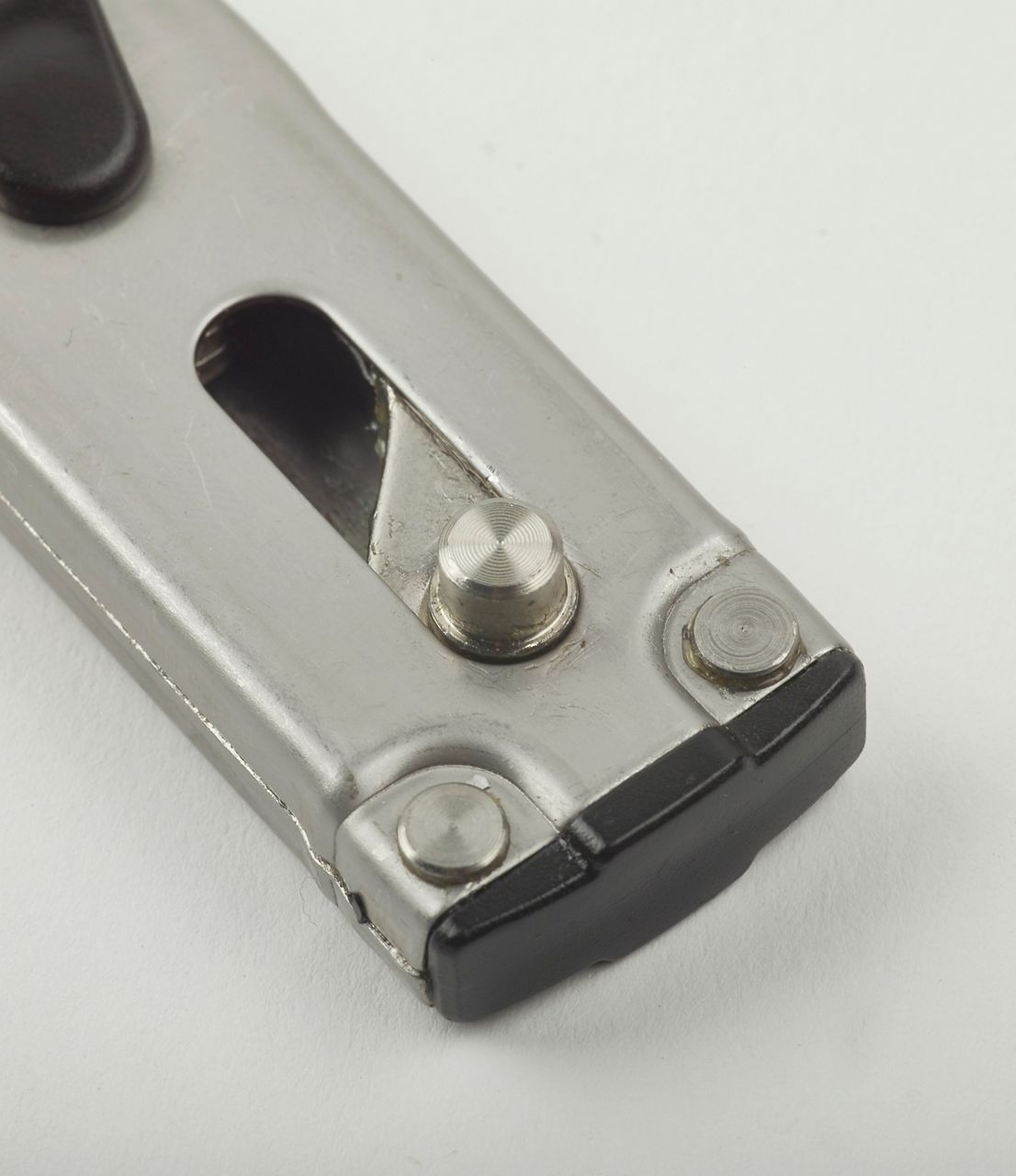

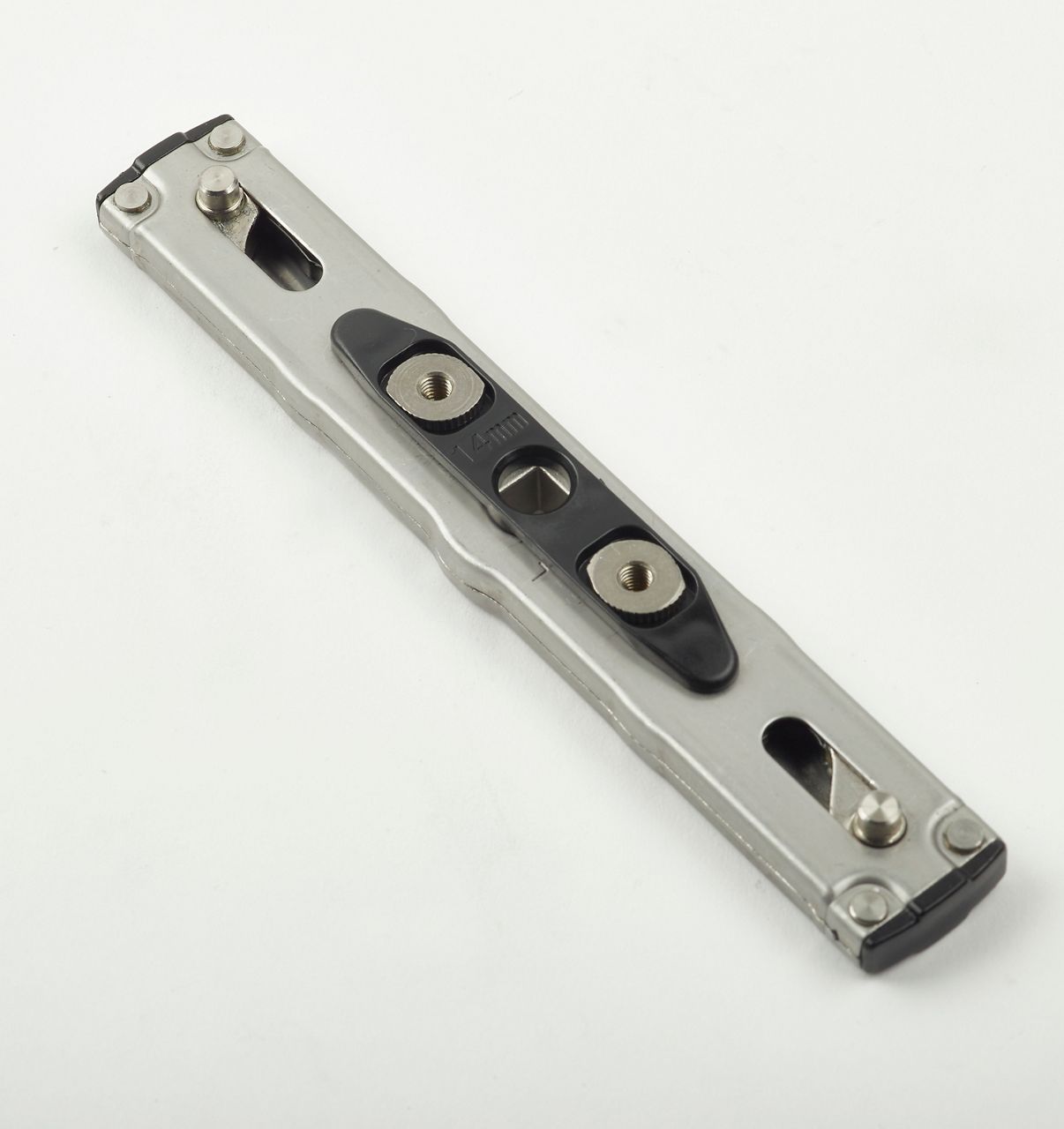

A compact austenitic stainless steel bi-directional gearbox to operate multi-point locking on structurally glazed style window systems

Features

  • Inherently strong design allows the lock to be used on large vents with multiple locking points
  • Installation requires little or no routing

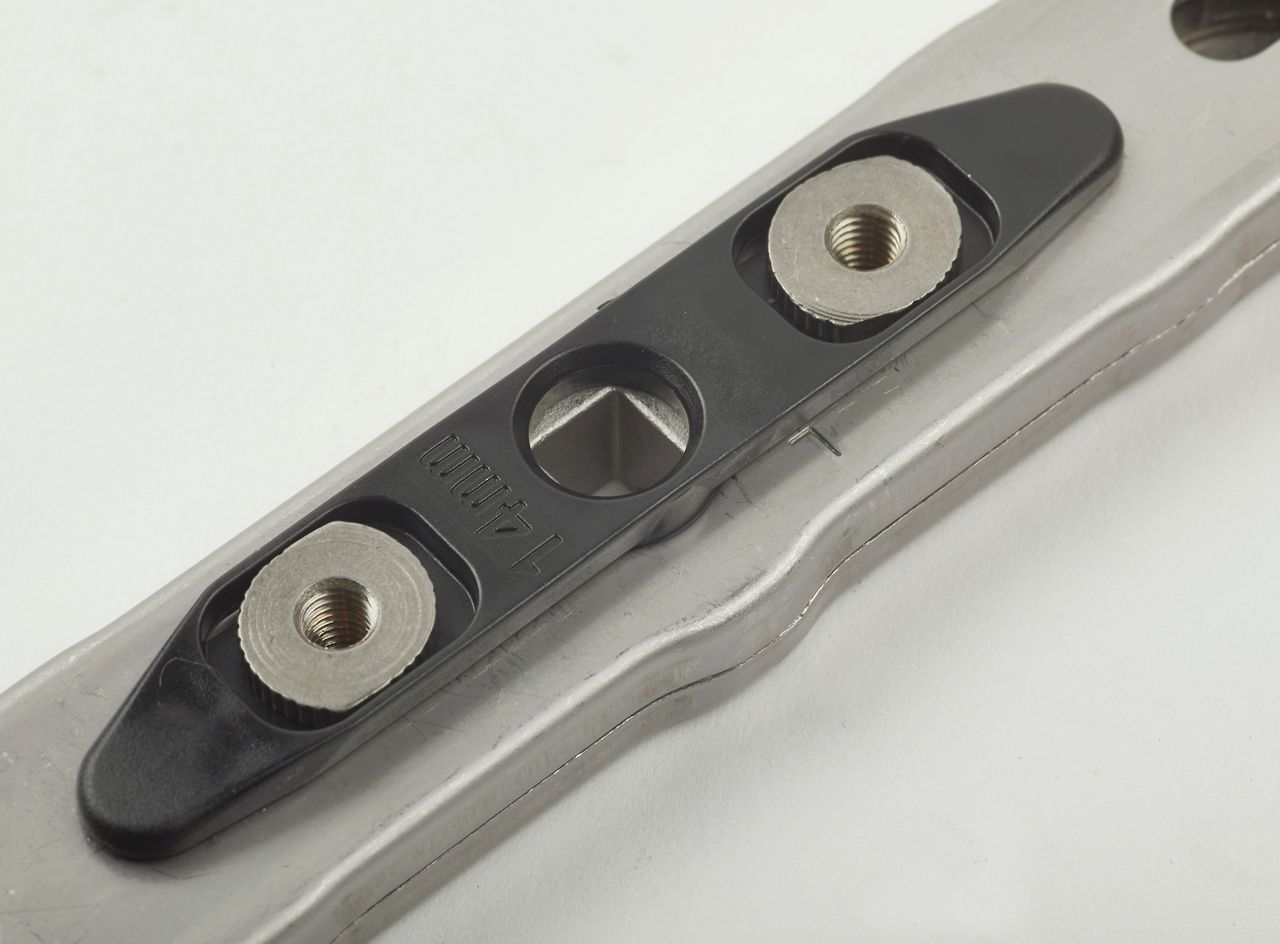

  • The patented integrated euro-groove fitting system with 14mm, 15mm, and 16mm groove width options
  • Fastens to the euro-groove using a 5mm hex key without the need for separate fixing during transit before handle fitment
  • Available with 6mm and 10mm drive spigots
  • 18mm bi-directional throw
  • Left and right-hand variants available for symmetrical installation on dual-handle application
  • Polymer bushing on all pivot surfaces reduces operational friction and wear
  • No lubrication or maintenance required
  • Full Technical and Sales Support available
  • Manufactured from Austenitic* stainless steel for high corrosion resistance
  • 12 Year Guarantee (details available upon request)
  • *Austenitic 304 stainless steel for high corrosion resistance.

  • Sterling Lock

    Specifications


    PART CODES AND VARIANTS

    Part Code

    Eurogroove Fitting System Width

    (mm)

    Drive Spigot Diameter

    (mm)



    14

    15

    16

    6

    10

    SLT1406(L/R)

    ·





    ·



    SLT1410(L/R)

    ·







    ·

    SLT1506(L/R)



    ·



    ·



    SLT1510(L/R)



    ·





    ·

    SLT1606(L/R)





    ·

    ·



    SLT1610(L/R)





    ·



    ·







    Note: This product is available in either left-hand (L) or right-hand (R) operation. Please add either L or R to the end of the pard code accordingly. E.g. SLT1410L for LH 14 mm Eurogroove with 10mm drive spigot.
