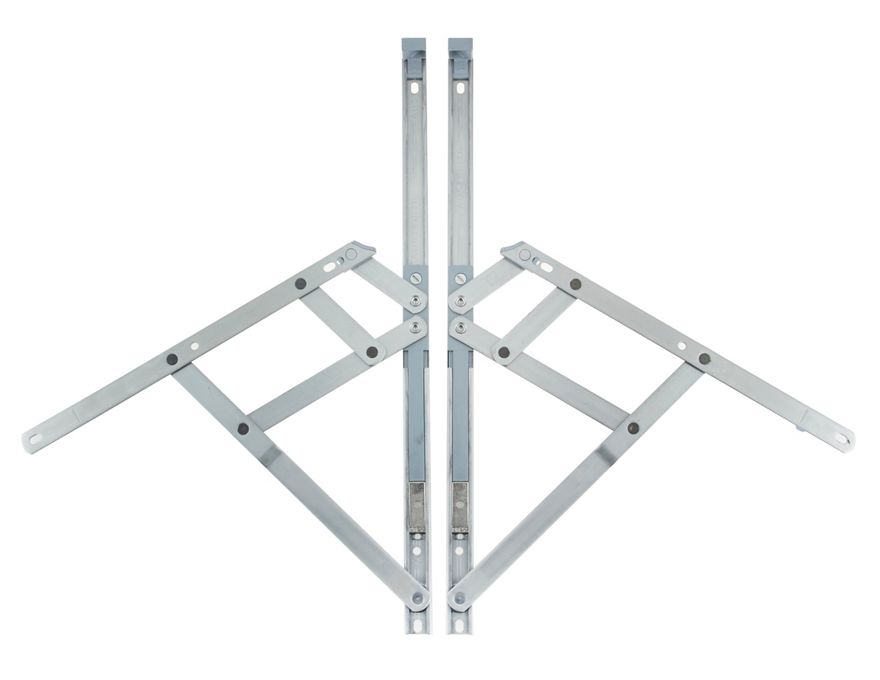

The Defender Restricted has been designed specifically for resident safety.

Features

A built-in quick-release lever allows the window to be fully opened for easy cleaning, total ventilation.
Handed 'profiled' vent arm further enhancing weather seal
Extended enclosed end cap to enhance weather sealing
Built-in mechanism limits initial opening
Restrictor automatically relocates and resets when the window is closed
Available in 12" to 24" top hung and 12" and 16" side hung
Unique patented robust cam friction device eliminates any risk of friction screw misuse
Available in ferritic and austenitic stainless steel for enhanced corrosion resistance
Drill jigs for all sizes are available to order
Slot hole slot format will provide the ability to adjust the vent easily
High carrying capacity of 20" and 24" top hung hinges available

Defender Restricted

Specifications -Vent Size and Weight Chart - DEFENDER Restricted Hinges


Hinge Code (Top Hung)	Max.Vent Weight (Kg)	Min.Vent Height (mm)	Max.Vent Height (mm)	Max.Vent Width (mm)	Restricted Angle (+/-2.5°)	Opening Angle (+/-2.5°)
EDTR12	20	350	550	-	14°	65°
EDTR16	21	500	780	-	10°	59°
EDTR20	26	700	1100	-	8°	50°
EDTR24	40	850	1300	-	7°	37.5°
Hinge Code - (Side Hung)		Min.Vent Width (mm)
EDSR12	22	300	-	600	13°	58°
EDSR16	24	400	-	700	11°	58°

Note: Vent height/width is measured from rebate to rebate (not overall size or outer frame size) on conventional windows or glass size on structurally glazed windows e.g. curtain wall panels whichever is the greater dimension. For maximum vent height and widths not stated, consult profile manufacturers for recommendations on requirements of system strength and sealing.

Note: Above sizes/weights also apply to DEFENDER Hinge Variants – H6/H7 (Highline) & - TV (Timber Variant – standard stack height only).

Note: The restricted opening provided by restricted hinges is controlled by the restricted angle shown above. The resulting opening will vary dependant on profile and vent size.
