SECURISTYLE
  • Products
  • Window Hinges

Rushmore

  • Residential
  • Industry and manufacturing
  • Retail
  • Office and enterprise

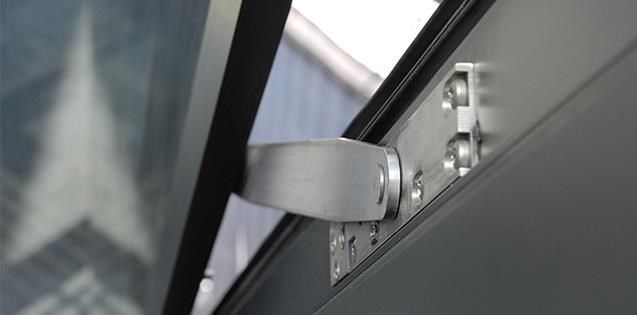

The Rushmore system is specifically designed to facilitate large and/or heavy openings in building facades

Features

  • Provides natural, purge, or smoke ventilation in commercial buildings
  • Significantly enlarged glazed area means fewer broken sightlines
  • Windows can be manually operated, mechanically, or motor-driven to control opening and closing
  • Can be used on bottom hung vents in excess of 350kg and 4.2m high*
  • Can be used on top hung vents in excess of 250kg and 3m high*
  • Full Technical and Sales Support available
  • Manufactured from Austenitic** stainless steel for high corrosion resistance
  • 12 Year Guarantee (details available upon request)
  • *Fully tested parameters. Larger vents can be tested on a project-specific basis
  • **Austenitic 304 stainless steel for high corrosion resistance.
Image:

Cookie consent

This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

*Your choice will be saved in a cookie until you have closed your browser.

Rushmore

Specifications

Hinge Code

Max.Vent Weight

(Kg)

Min.Vent Height

(mm)

Max.Vent Height

(mm)

Max.Opening Angle

(+/- 2.5°)

RU514 250 1500 3500 15°

Hinge Code (Bottom Hung)

(BHOO)

Max.Vent Weight

(Kg)

Min.Vent Height

(mm)

Max.Vent Height

(mm)

Max.Opening Angle

 (+/- 2.5°)

RU514 350 1500 4200 15°





  • Microsoft Word - RMHD_Rushmore_System_Rev8_0114.doc(PDF, 643 KB)
