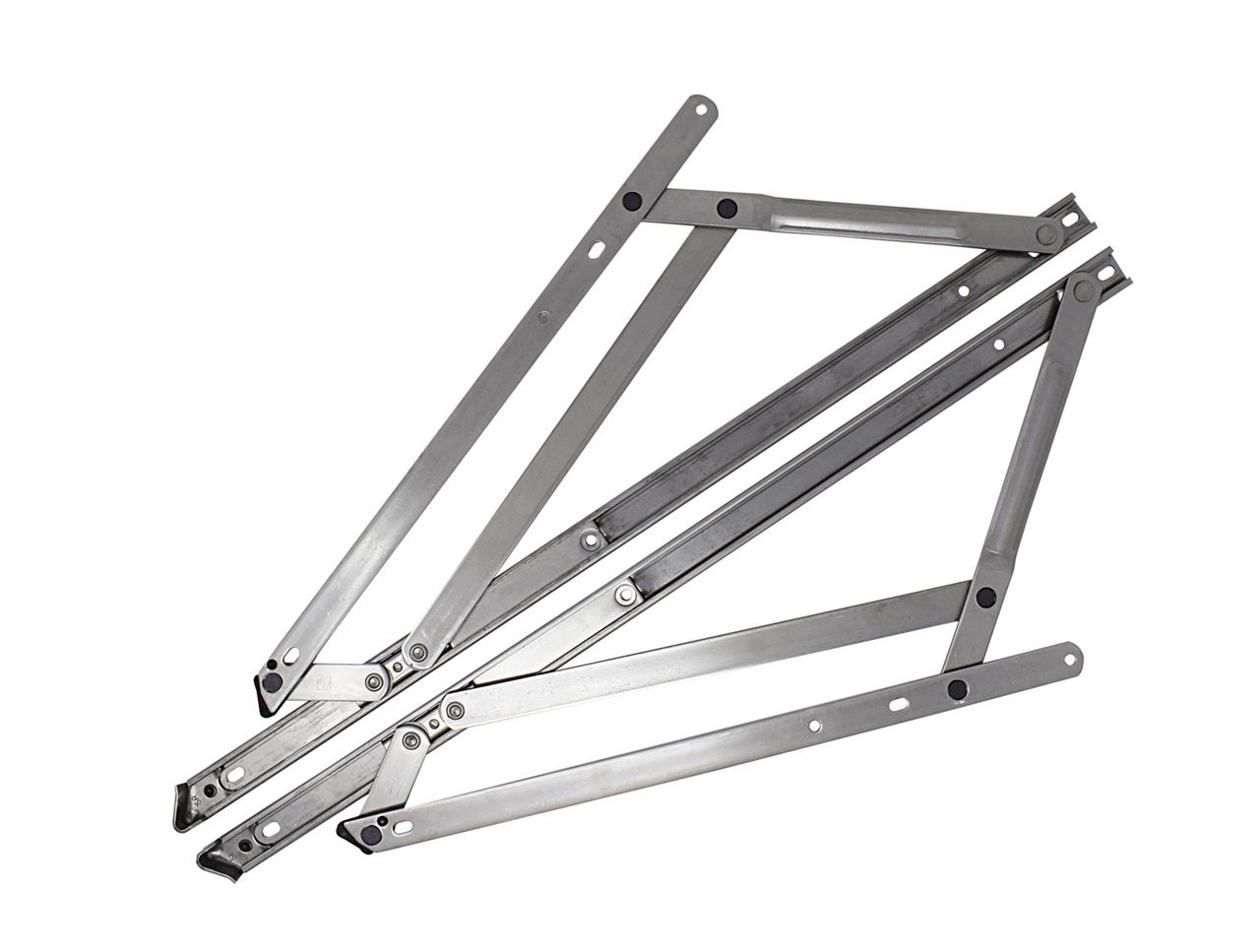

Sterling Advance Window Hinge

Sterling Advanced Top Hung Window Hinges are a premium, self-balancing solution designed to provide natural ventilation, smooth operation and reliable weather sealing for projecting top-hung windows. Ideal for commercial application, including high-rise buildings and complex façade designs, where strength, safety and consistent performance are essential.

Designed to support heavy sashes, including those with offset glass, the hinges use precision-balanced pivot technology and are manufactured from Austenitic 304 stainless steel for excellent corrosion resistance and long-term durability. Developed using advanced kinematic CAD simulation, each hinge is engineered to meet specific project requirements, offering flexibility and dependable performance in demanding environments.

Technical Features:

• Can be used on top hung windows up to 180kg and 2.5m high
• Suitable for 16mm-18mm hardware cavity
• Adjustable maximum opening stop in all top hung hinges

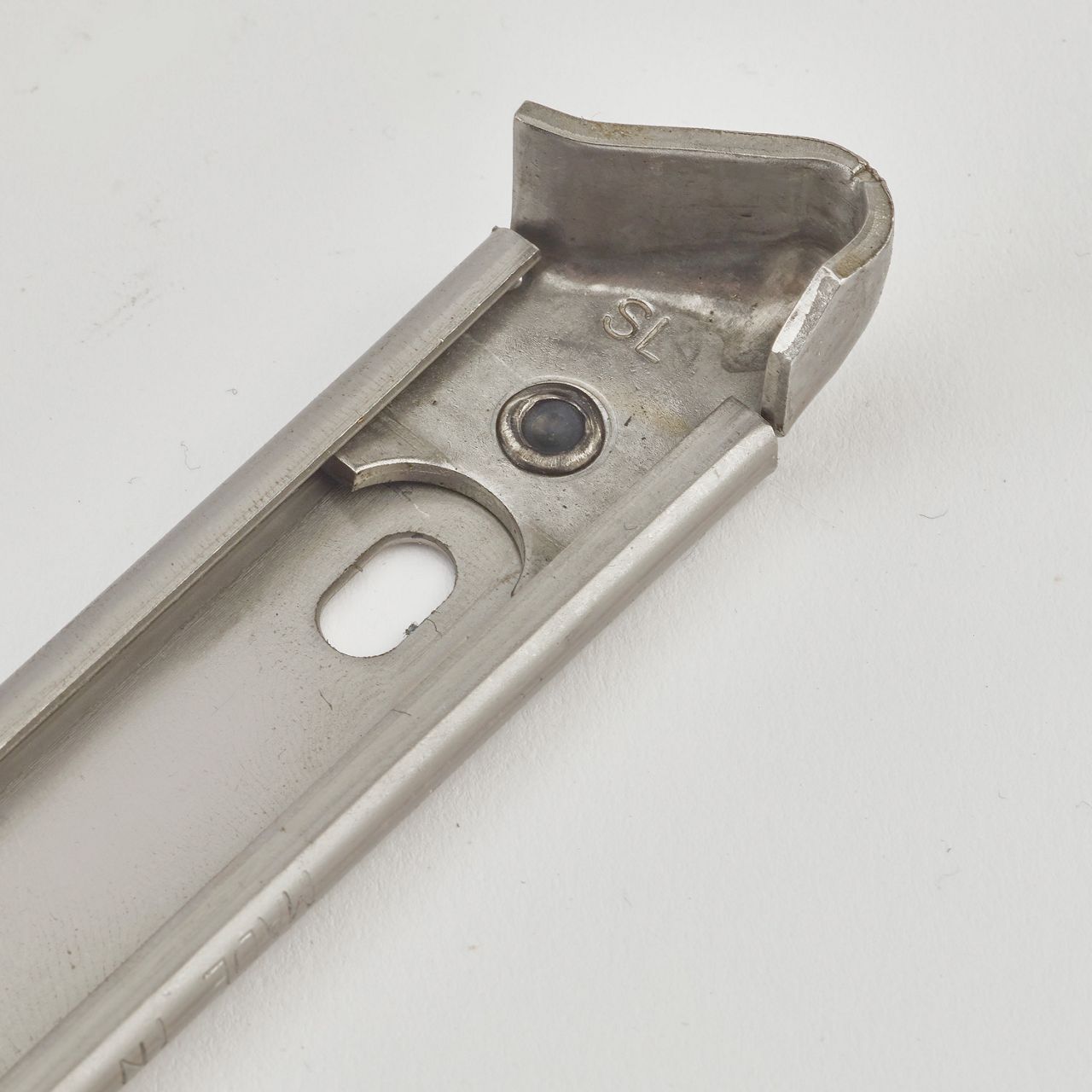

• Asymmetric stainless steel end cap combined with the plastic endpoint to eliminate metal to metal contact for superior durability and strength

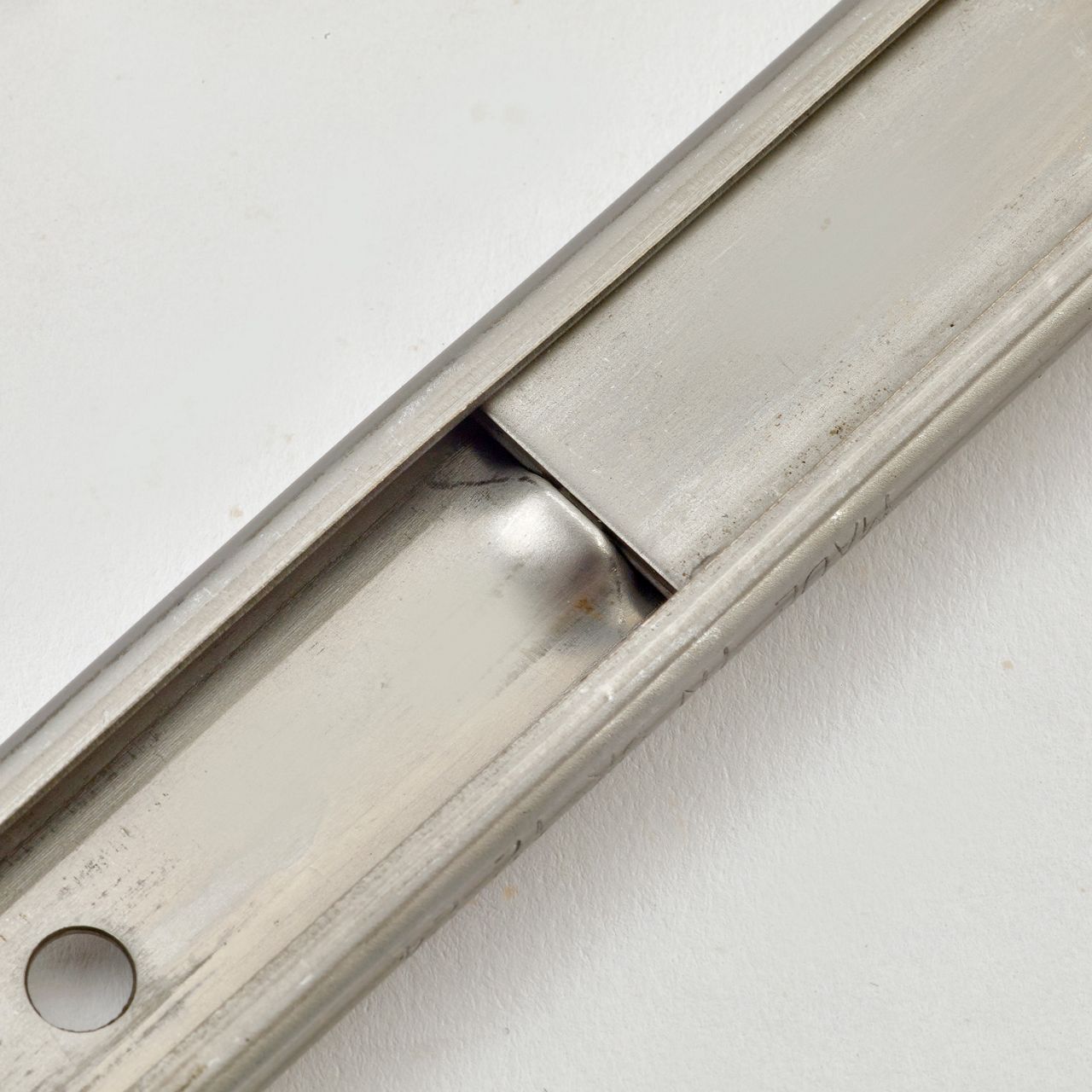

• Composite stainless steel and plastic slider for strength and maximum wear resistance
• Coated pivot rivets for enhanced wear resistance and long-life expectancy
• Optional cam adjustment device to aid final on-site alignment of heavy top hung vents
• Manufactured from Austenitic 304 stainless steel for high corrosion resistance
• 12 Year Guarantee (details available upon request)
• Full Technical and Sales Support available

Product Variants:

• Sizes: 10” - 26”
• Applications: Top-hung windows (sashes)
• Commercial and High-Rise Only
