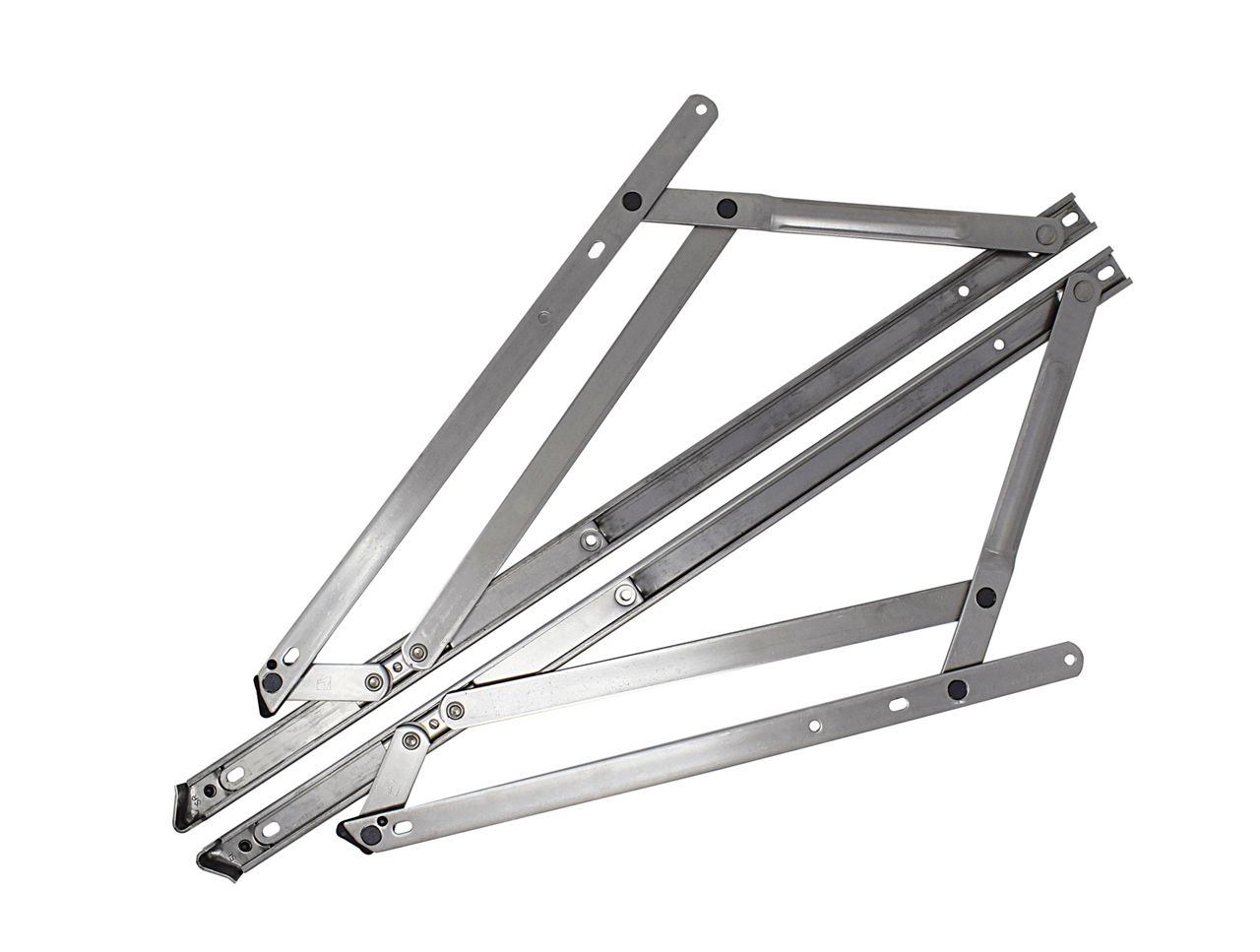

Securistyle unveils premium Sterling Advance Window Hinge

Securistyle is proud to launch the Sterling Advance Window Hinge, a next-generation self-balancing hinge system with exceptional natural ventilation, superior weather sealing, and smooth, reliable operation for projecting top-hung windows.

As building envelope design continues to advance, higher performance standards are placing greater demands on glazed façades. One notable shift is the requirement for enhanced thermal performance, which has led to glazing in opening lights being positioned further outboard rather than in the traditional inline location.

The Sterling Advance Window Hinge has been specifically developed to accommodate these offset glass positions. Engineered to deliver improved balance and optimised operating forces, it ensures smooth, reliable operation even in complex facade designs.

The system has been precision-engineered using advanced kinematic CAD simulation. This means that each hinge is custom-developed to meet the specific requirements of that project, ensuring superior operation, long-term performance, and design flexibility.

Constructed from Austenitic 304 stainless steel, the hinge provides outstanding corrosion resistance and mechanical durability in even the harshest environments.

Richard Gurmin, Director and Head of Export – Fenestration at Securistyle, comments: “Our new Sterling Advance Window Hinge is exceptionally strong, safe, and smooth to use – making it ideal for fabricators and architects working on buildings that require a premium user experience with no compromise on durability.”

Further key features of the Sterling Advance Window Hinge include:

  • Suitable for top-hung vents up to 180kg and 2.5m in height
  • Adjustable maximum opening stop and optional cam adjustment device for precise on-site alignment
  • Available in standard and offset variants to suit 16–18mm hardware cavities
  • Asymmetric stainless steel end cap with plastic endpoint to eliminate metal-to-metal contact and enhance durability
  • Composite stainless steel and plastic slider for improved strength and wear resistance
  • Coated pivot rivets for superior long-term performance and reduced wear
  • Backed by a 12-year guarantee and full technical and sales support

Learn more about the new Sterling Advance Window Hinge from Securistyle
